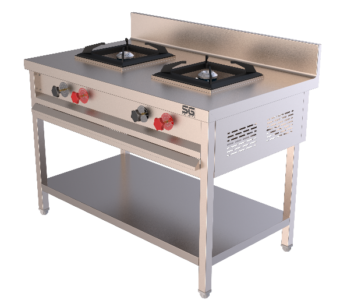

Indian Cooking Ranges

SG Equipments Indian Cooking Ranges are constructed of AISI304 Food Grade Stainless Steel. Standard models are available with Single Burner, Two Burner, Three Burner or 4 Burner configurations. Top panel is made of 1.5mm THK stainless steel, front control panel is made of 1.2mm THK stainless steel and the side and rear panels are 1mm THK stainless steel with suitable air vents. In case Undershelf, is provided, will be made of 1.2mm THK stainless steel sheet and sound deadened with 1.2mm THK omega channels. The SG Equipments Indian Cooking Range is provided with Heavy duty, Cast Iron vessel rest, and a variety of burners. A pilot burner will be provided with one of the main burners. Individual spillage trays made of 1.2mm THK AISI304 sheet are provided under individual burners if the burners are side by side and shared spillage trays are provided if the burners are front and back.

4 Burner Cooking Ranges With Oven

The SG Equipments 4 BURNER COOKING RANGE WITH OVEN, is a uniquely designed cooking range with 4 burners and electrical or gas oven, combined together in a compact and efficient way, and made from AISI304 Food Grade Stainless Steel. Constructed around a strong internal frame. Top panel is made of 1.5mm THK stainless steel, front control panel is made of 1.2mm THK stainless steel and the side and rear panels are 1mm THK with hot air vents. The SG Equipments 4 Burner Cooking Range is provided with Heavy duty vessel rest, burners and 2 spillage trays. Fitted with 4HP Burner or 2HP and 2LP.

The SG Equipments 4 Burner Cooking Range is available in the standard sizes below.

• 4BCRO RLG75 L1000xD1000xH850+S150
• 4BCRO RLG75 L900xD900xH850+S150
• 4BCRO RLG75 L800xD800xH850+S150
• 4BCRO RLG75 L750xD750xH850+S150

Stock Pots(Bulk Cooking Range)

The SG Equipments STOCK POTS (BULK COOKING RANGES), made from AISI304 Food Grade Stainless Steel. Constructed around a strong internal frame. Top panel is made of 1.5mm THK stainless steel, front control panel is made of 1.2mm THK stainless steel and the side and rear ventilated panels are 1mm THK with hot air vents. The SG Equipments Stock Pots (Bulk Cooking Range), are provided with Heavy duty vessel rest, spillage trays. The burners can be configured in 3 or single burner or ring burners. Fitted with 1HP or 3HP Burners. Made of AISI304 Stainless Steel, Cooking range with low height for bulk cooking. Provided with Heavy duty Burners and Vessels Rests.
Standard Sizes are:
(i) L600xD600xH500
(ii) L700xD700xH500
(iii) L750xD750xH500
(iv) L900xD900xH500

Hot Plates

SG Equipments manufactures a wide variety of Hot Plates. Constructed using AISI304 Food Grade Stainless Steel, and a Mild Steel hot plate. The SG Equipments Hot Plates comes in various configurations like, Plain Hot Plate, Ribbed Hot Plate, Semi Ribbed Hot Plate, Removable Hot Plate, Fixed Hot Plates, Hot Plates with puffer, Hot Plates with 3 Sides Splash Guard, and Table Top Hot Plates. The rear Splash guard is provided with an integrated hot air vent. Hot Plates are available with square legs or Round legs. LPG operated or Electrical operated models are available. The Side and Rear panels are provided with hot air vents.

Chinese Cooking Ranges

The SG Equipments CHINESE COOKING RANGE, is a highly efficient cooking range for Chinese dishes, made entirely using AISI304 Food Grade Stainless Steel. Provided with an internal Stainless Steel frame with either square or round legs, and cladded using 1mm THK side and rear panels with hot air vents, Top Panel 2mm THK, and a recessed Control panel of 1.2mm THK, the SG Equipments Chinese Cooking Range is sturdy and reliable addition to a great kitchen. The SG Equipments Chinese Cooking Range is available with various configurations such as, 2 Chinese Burners and 1 Indian Burner, 2 Chinese Burners, 1 Chinese Burner and 1 Indian Burner, or single Chinese Burner. All Chinese Cooking ranges are provided with water spray system on the top panel, Cast Iron Vessel Rests and swivel type faucet on the Splash Guard.

Premium 2 Burner Cooking Range (Longitudinal Burners)

SG Equipments Premium 2 Burner Cooking Range with longitudinally arranged (front and back) 2 burners, is a high-end cooking range with imported low pressure, high efficiency burners and imported heavy duty vessel rests. It is designed with eye pleasing aesthetics and ergonomics, to go with the premium nature of the equipment. Built around an internal frame and cladded with 1mm THK side and rear panels, 1.5mm THK top panel, and 1.2mm THK control panel, all of which are AISI304 Food Grade Stainless Steel, the Premium 2 Burner Cooking Range provides with incredible reliability and ease of cleaning. The Premium 2BCR is equipped with imported control valves with thermocouple for safety. The imported burners of 3, 4.5, 7.5 and 9 KW are available. The Premium 2 Burner Cooking Range is available with Square Pipe Legs of 40x40X1.5mm THK, or Round Pipe Legs Ø38×1.5mm THK, with undershelves of 1.2mm THK and sound deadened by omega channels or cross supports of Square Pipes 25x25x1.5mm THK, as required.

Premium 2 Burner Cooking Range (Lateral Burners)

SG Equipments Premium 2 Burner Cooking Range with laterally arranged (side by side) 2 burners, is a high-end cooking range with imported low pressure, high efficiency burners and imported heavy duty vessel rests.. It is designed with eye pleasing aesthetics and ergonomics, to go with the premium nature of the equipment. Built around an internal frame and cladded with 1mm THK side and rear panels, 1.5mm THK top panel, and 1.2mm THK control panel, all of which are AISI304 Food Grade Stainless Steel, the Premium 2 Burner Cooking Range provides with incredible reliability and ease of cleaning. The Premium 2BCR is equipped with imported control valves with thermocouple for safety. The imported burners of 3, 4.5, 7.5 and 9 KW are available.  The Premium 2 Burner Cooking Range is available with Square Pipe Legs of 40x40X1.5mm THK, or Round Pipe Legs Ø38×1.5mm THK, with undershelves of 1.2mm THK and sound deadened by omega channels or cross supports of Square Pipes 25x25x1.5mm THK, as required.

Premium 4 Burner Cooking Range

SG Equipments Premium 4 Burner Cooking Range, is a high-end cooking range with imported low pressure high efficiency burners and imported heavy duty vessel rests. It is designed with eye pleasing aesthetics and ergonomics, to go with the premium nature of the equipment. Built around an internal frame and cladded with 1mm THK side and rear panels, 1.5mm THK top panel, and 1.2mm THK control panel, all of which are AISI304 Food Grade Stainless Steel, the Premium 2 Burner Cooking Range provides with incredible reliability and ease of cleaning. . The Premium 4BCR is equipped with imported control valves with thermocouple for safety. The imported burners of 3, 4.5, 7.5 and 9 KW are available. The Premium 4 Burner Cooking Range is available with Square Pipe Legs of 40x40X1.5mm THK, or Round Pipe Legs Ø38×1.5mm THK, with undershelves of 1.2mm THK and sound deadened by omega channels or cross supports of Square Pipes 25x25x1.5mm THK, as required.

Premium 2+1 Chinese Cooking Range

SG Equipments Premium 2+1 Chinese Cooking Range, is a high-end Chinese cooking range with imported low pressure high efficiency WOK burners, and imported heavy duty vessel rests. It is designed with eye pleasing aesthetics and ergonomics, to go with the premium nature of the equipment. Built around an internal frame and cladded with 1mm THK ventilated side and rear panels, 2.5mm THK top panel, 1.5mm THK Splash Guard and 1.2mm THK control panel, all of which are AISI304 Food Grade Stainless Steel, the Premium 2 Burner Cooking Range provides with incredible reliability and ease of cleaning. The Premium 2+1 Chinese Cooking Range is provided with water spray system on the top panel and swivel type faucets on the splash guard. The Premium Chinese Cooking Range is equipped with imported control valves with thermocouple for safety, and Spark Generator for easy operation. The imported WOK burners of 18KW are provided for Chinese cooking and an imported normal burner of 3, 4.5, 7.5 or 9KW in the middle. The Premium 2+1 Chinese Cooking Range is available with Square Pipe Legs of 40x40X1.5mm THK, or Round Pipe Legs Ø38×1.5mm THK, with undershelves of 1.2mm THK and sound deadened by omega channels, or cross supports of Square Pipes 25x25x1.5mm THK, as required.

Kadai Frier (Bulk Fryer)

The SG Equipments Kadai Fryers / Bulk Fryers are made from AISI304 Food Grade Stainless Steel. The fryer is constructed around an internal stainless steel frame and cladded with 1mm THK side and rear panels, 1.5mm THK top panel welded and finished to a Kadai of 3mm THK, and 1.2mm THK control panel. Available with 1.2mm THK undershelves or cross supports. The SGE Equipments Kadai / Bulk Fryer is available with various configurations such as LPG operated or electric operated, square legs or round legs.

Deep Fat Fryer

The SG Equipments Deep Fat Fryer (DFF), is made of AISI304 Food Grade Stainless Steel. The SG Equipments DFF is designed to satisfy the urgent nature of the fast food industry. These DFFs are ergonomically designed so that the usage, maintenance and cleaning is going to be very easy. The SG Equipments DFFs are provided with immersed heating element, for faster cooking. All the SG Equipment DFFs are built around an internal frame and cladded with 1mm THK side and rear panels, 1.5mm THK Top Panel and 1.2mm THK control panel. The front control panel is provided with rotary on/off switch, light indicators and an analogue temperature control thermostat. The heating element can be of lift-up or fixed type depending upon the model. An oil drain tray is provided on the lift-up heating coil models, to collect the excess oil. The SG Equipments DFFs are also provided with stainless steel wire meshed detachable frying basket with heat resistant handle. They are available in a wide range of configurations & capacities like Single Tank Table Top, Double Tank Table Top, Single tank Floor Standing with Square or Round Legs, Double tank Floor Standing with Square or Round Legs. DFFs are also available with undershelves or cross supports.

Salamanders

SG Equipments Salamanders are made from AISI304 Food Grade Stainless Steel. 2 models of Salamanders are available, such as Static Salamander and movable head type Salamander. The static Salamander is equipped with a Rotary On/Off switch an analogue thermostat for temperature control and 2 light indicators. The adjustable head type Salamander has 2 number of analogue thermostats, two light indicators and a removable grill and tray.

Sandwich Griller

The SG Equipments Sandwich Griller is made from AISI304 food grade Stainless Steel. It is designed for uniform heating on the plates. The top heating plate’s weight can be adjusted by pressure key. The exterior is finished in polished stainless steel with grooved MS Plates. It is equipped with one rotary power switch an analogue thermostat and two light indicators.

Sterilizers And Warmers

SG Equipments manufactures a variety of Sterilizers and Warmers to suit different requirements, such as Cup Sterilizer, Cutlery Sterilizer, Vada Warmer, Spoon Warmer, Plate Warmer and Glass Warmer. All the SG Equipment sterilizers and warmers are made from AISI304 Food Grade Stainless Steel. Spoon Sterilizer is also available in drop-in configuration. The Sterilizers and Warmers are provided with a rotary On/Off switch, an analogue thermostat for temperature control and light indicators.

Boilers

The SG Equipments manufactures boilers to suit various boiling requirements in a commercial kitchen. Totally constructed from AISI304 Grade Food Grade Stainless Steel, the SG Equipments boilers provide utmost reliability and finish. Boilers are constructed with 1.5mm THK outer chamber or jacket which is insulated, and an inner water chamber 1.2mm THK SS. Milk Boilers are double jacketed with an extra chamber of 1.2mm THK for water. Boilers are provided with 18G SS connected with Ø1/2” BSP valve and 1.2mm THK SS lid. Equipment is supported with 4No Dia25mm Round legs along with adjustable bullet feet and 2Nos Ø3/8” strong SS handle. Unit is supplied with 2Kw single phase heater. The Boilers are provided with a control panel consisting of a rotary on/off switch, an analogue thermostat and two light indicators

Barbeque Griller

SG Equipments Barbeque Griller is constructed of AISI304 Food Grade Stainless Steel with the internal charcoal cavity made in mild steel. The Top panel is done in 1.5mm THK steel with double beading. Built around an internal frame consisting of Square Pipe 40x40x1.5mm THK as legs with adjustable nylon feet, and 32x32x3mm THK angle irons as cross members. The frame is covered with 1mm THK perforated steel sheet in the sides and rear. The Control Panel is made from 1.2mm THK steel sheet. An undershelf of 1.2mm THK sheet with double beading on all the sides are provided at 150mm from the floor. A removable spillage tray made from 1mm THK steel is provided with handle and hem on all sides, right under the control panel. The Barbeque Griller is provided with a T Burner and a cast iron grill is provided inside the charcoal cavity.

Robata Grill

The SG Equipments Charcoal Griller is made mainly from AISI304 Food Grade Stainless Steel. The Charcoal Griller is built around an internal frame consisting of Square Pipe 40x40x1.5mm THK as legs, and Angle frame 32x32x3mm THK as cross members. The internal frame is cladded with 1mm THK stainless steel sheet in double layer for insulation. The internal hot charcoal chamber is made from mild steel with brick insulation. Cast iron grill is provided inside the hot chamber. T burners are provided underneath the hot chamber. The top panel is made from 2mm THK stainless steel double beaded on all sides. An external frame for keeping the grills and skewers is provided on the top panel which consists of vertical square pipe 30x30x1.5mm THK and angle iron 32x32x3mm THK as cross members. The control panel is made from 1.2mm THK stainless steel and is slightly recessed inside. A couple of spillage trays are provided which is made from 1mmm THK stainless steel sheet with hem on all sides and handles. An optional Rumali roti tawa can be provided on the external frame.

Dim Sum Steamer

Dim Sum Steamer is made from AISI304 Food Grade Stainless Steel. The Dim Sum Steamer is built around an internal frame consisting of Square Pipe 40x40x1.5mm THK as legs and angle iron 32x32x3THK as cross supports. Cross supports of Square Pie 25x25x1.5THK is provided at the bottom of the frame, 150mm above the floor. Sunk-in Top Panel is 2mm THK with 400mm Splash with heat vents on top side, and double beaded on 3 sides reinforced with angle frame 32x32x3mm THK angle frame. Equipment is covered with double layer 1mm THK with insulation, on the sides and rear.

Pasta Blancher

The Pasta Blancher is unit is constructed of AISI304 Food Grade Stainless Steel. The Pasta Blancher is constructed around an internal structural frame made from vertical Square Pipe 40x40x1.5mm THK as legs and Stainless Steel Angle Iron 32x32x3mm THK as cross supports which supports the top panel. The Sunk-in Top Panel is of 1.5mm THK with Splash on rear side and double beaded on 3 sides reinforced with the angle iron on the internal frame. An undershelf of 1.2mm THK double beaded on all sides and reinforced with omega channel of 1.2mm THK, is provided at a height of 150mm from the floor. An optional cross supports of Square Pipe 25x25x1.5mm THK also can be provided instead of the undershelf at a same height of 150mm from the floor. The internal frame is cladded with double layer stainless sheet of 1mm THK on the sides and rear with insulation in between. The front control panel is of stainless steel sheet 1.2mm THK. The control panel is equipped with a rotary On/Off switch, an analogue thermostat and a couple of light indicators. The water chamber is made from 1.5mmm THK Stainless Steel sheet. Four numbers of perforated baskets of 1.2mm THK is provided with the Pasta Blancher.

Tandoor

The SG Equipments Tandoor is constructed of AISI304 Food Grade Stainless Steel. It is built with an internal frame structure of vertical Square Pipe 40x40x1.5mm THK and cross members of Angle 32x32x3mm THK. The internal frame is cladded with stainless steel 1mm THK sheet on the sides and rear, and the front is cladded with stainless steel sheet of 1.2mm THK. The front panel is provided with a door for the removal of charcoal. The top panel is removable and is 1.5mm THK with a splash and double beaded on all sides. The top panel is provided with a cut out of Ø375 mm mouth for the clay pot. The clay pot is insulated with glass wool in to a GI drum and further insulated with mud within the drum. Four quantity of all swivel heavy duty castor wheels, are provided for easier movement of the Tandoor. Tandoor can be of charcoal operated or LPG operated. Two handles of Ø25×1.5mm THK Pipe is provided on the front vertical members of the internal frame.

Idly Steamers

SG Equipments manufactures a wide variety of Idly Steamers with different operating systems like LPG Operated, Steam Operated or Electrical Operated. The capacity of the Idly Steamers ranges from 50 Idlies to 600 Idlies. All the Idly Steamers are made from AISI304 Food Grade Stainless Steel. The Idly Steamer floor standing models will be provided with a stand with frame made of vertical Pipe Ø38×1.5mm THK and top channel of 1.5mm THK, with a drain hole and adjustable nylon bullet feet. Stainless steel control valves for steam is provided on the side. The Doors are made from 1.2mm THK stainless steel sheet which is double layered with insulation and is provided with rubber beading for sealing. The Doors are locked with spiral, rotatable locks with handle. Table top type Idly Steamers will be provided with a drip tray in the front bottom, made from 1mm THK stainless steel sheet with hem inside. Die pressed idly trays will be provided with the Idly Steamer.
